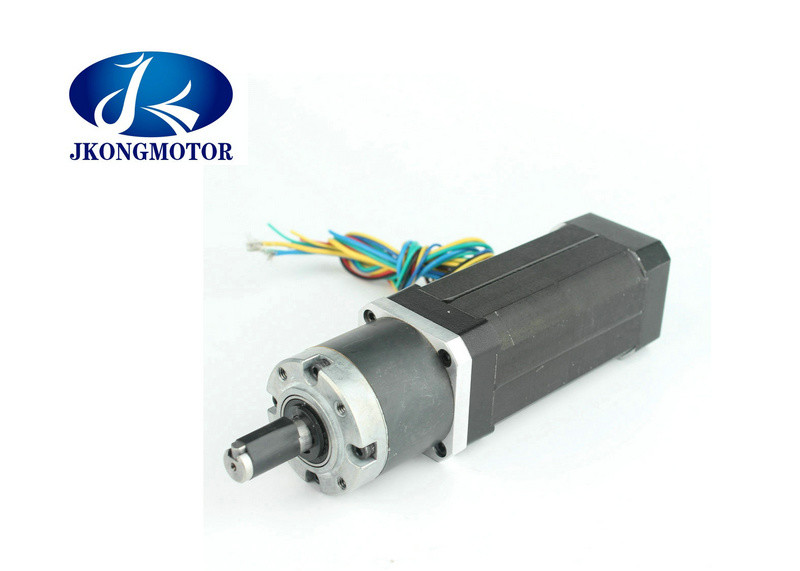

24v Planetary Geared Brushless Dc Motor 100W 105W 4000RPM With Ce Rohs
1. General Specification
Winding type: Delta
Hall effect angle : 120 degree electrical angle
Shaft run out : 0.025mm
Radial play : 0.02mm＠450g
End play: 0.08mm＠450g
Max.radial force : 28N ＠20mm form the flange
Max.axial force : 10N
Insulation class : Class B
Dielectric strength : 500VDC for one minute
Insulation resistance : 100MΩ Min.,500VDC
2. Electrical Specification:
| | | Model |
| Specification | Unit | JK42BLS04 |
| Number Of Phase | Phase | 3 |
| Number Of Poles | Poles | 8 |
| Rated Voltage | VDC | 24 |
| Rated Speed | Rpm | 4000 |
| Rated Torque | N.m | 0.25 |
| Rated Power | W | 105 |
| L1 Body Length | mm | 100 |
3. Gearbox Electrical Specification:
| Reduction ratio | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 182 | 219 | 254 | 306 | 354 | 427 | 495 | 596 |
| umber of geartrains | 1 | 2 | 3 | 4 |
| Transmission efficiency | 90% | 81% | 73% | 66% |
| Rated tolerance torque | 1 N.m | 4 N.m | 8 N.m | 10 N.m |
| Max momentary tolerance torque | 3 N.m | 12 N.m | 25 N.m | 30 N.m |
| Max radial load(12mm form flange) | ≤80N |
| Max shaft axial load | ≤30N |
| L2 length(mm) | 31.5 | 42.1 | 52.5 | 62.9 |
4. BLDC Motor With Ratio 26.8:1 Drawing:
Ideal Applications for BLDC Motors
We’ve seen that BLDC motors offer high efficiency and controllability, and that they have a long operating life. They are widely used in devices that run continuously. They have long been used in washing machines, air conditioners, and other consumer electronics; and more recently, they are appearing in fans, where their high efficiency has contributed to a significant reduction in power consumption.
They are also being used to drive vacuum machines. In one case, a change in the control program resulted in a large jump in rotational speed—an example of the superlative controllability offered by these motors.
BLDC motors are also being used to spin hard disc drives, where their durability keeps the drives operating dependably over the long term, while their power efficiency contributes to energy reduction in an area where this is becoming increasingly important.
Toward Wider Usage in the Future
We can expect to see BLDC motors used in a wider range of applications in the future. For example, they will probably be widely used to drive service robots—small robots that deliver services in fields other than manufacturing. One might think that stepper motors would be more suitable in this type of application, where pulses could be used to precisely control positioning. But BLDC motors are better suited to controlling the force. And with a stepper motor, holding the position of a structure such as a robot arm would require a relatively large and continuous current. With a BLDC motor, all that would be required is a current proportionate to the external force—allowing for more power-efficient control. BLDC motors may also be replacing simple brushed dc motors in golf carts and mobility carts. In addition to their better efficiency, BLDC motors can also deliver more precise control—which in turn can further extend battery life.
BLDC motors are also ideal for drones. Their ability to deliver precision control makes them especially suited for multirotor drones, where the drone’s attitude is controlled by precisely controlling the rotational speed of each rotor.
