80MM 2.39N.M 750W 3 Phase Ac Servo Motor With Driver For CNC System

Product Categories
CHANGZHOU JKONGMOTOR CO.,LTD
Contact Now

80MM 2.39N.M 750W 3 Phase Ac Servo Motor With Driver For CNC System

Brand Name : Jkongmotor

Model Number : 80ST-M02430

Certification : CE, ROHS, ISO

Place of Origin : CHINA

MOQ : 3-10pcs

Price : USD188-211/SET

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000PCS/month

Packaging Details : carton

Rated power（KW) : 0.75KW

Rated voltage (V) : 220V

Rated current（A） : 3.0A

Rated speed（rpm） : 3000RPM

Rated torque（N.m） : 2.39N.M

Peak torque（N.m） : 9N.M

Torque coefficient（N.m/A） : 0.8

Rotar inertia（Kg.m2） : 1.82*10-4

Line-Line Resistance(Ω) : 2.88

Line-Line Inductance(mH） : 6.4

Electrical time constant(ms) : 2.22

Weight(Kg) : 2.86

Insulation class : Class F

Safety class : IP65

Working Enviroment : Temperate: -20℃~+50℃;Humidity＜90

Contact Now

MIGE 80MM AC SERVO MOTOR

1. Specification

Model
80ST-M01330
80ST-M02430
80ST-M04025
Rated power(KW)
0.4
0.75
1.0
Rated voltage (V)
220
220
220
Rated current(A)
3
3
4.4
Rated speed(rpm)
3000
3000
2500
Rated torque(N.m)
1.27
2.39
4
Peak torque(N.m)
6
9
13.2
Voltage constant(V/Krpm)
40
48
56
Torque coefficient(N.m/A)
0.64
0.8
0.9
Rotar inertia(Kg.m2)
1.05×10-4
1.82×10-4
2.97×10-4
Line-Line Resistance(Ω)
4.44
2.88
1.83
Line-Line Inductance(mH)
7.93
6.4
4.72
Electrical time constant(ms)
1.66
2.22
2.58
Weight(Kg)
1.78
2.86
3.8
Insulation class
Class F
Safety class
IP65
Working Enviroment
Temperate: -20℃~+50℃;Humidity＜90

2. Details Parameters

Model Name
Holding Torque
Rated Speed
Rated Current
Rated Power
Driver
N.m
Rpm
A
KW
40ST-M00130
0.16
3000
0.4
0.05
JK-G2A3204
40ST-M00330
0.32
3000
0.6
0.1
JK-G2A3204

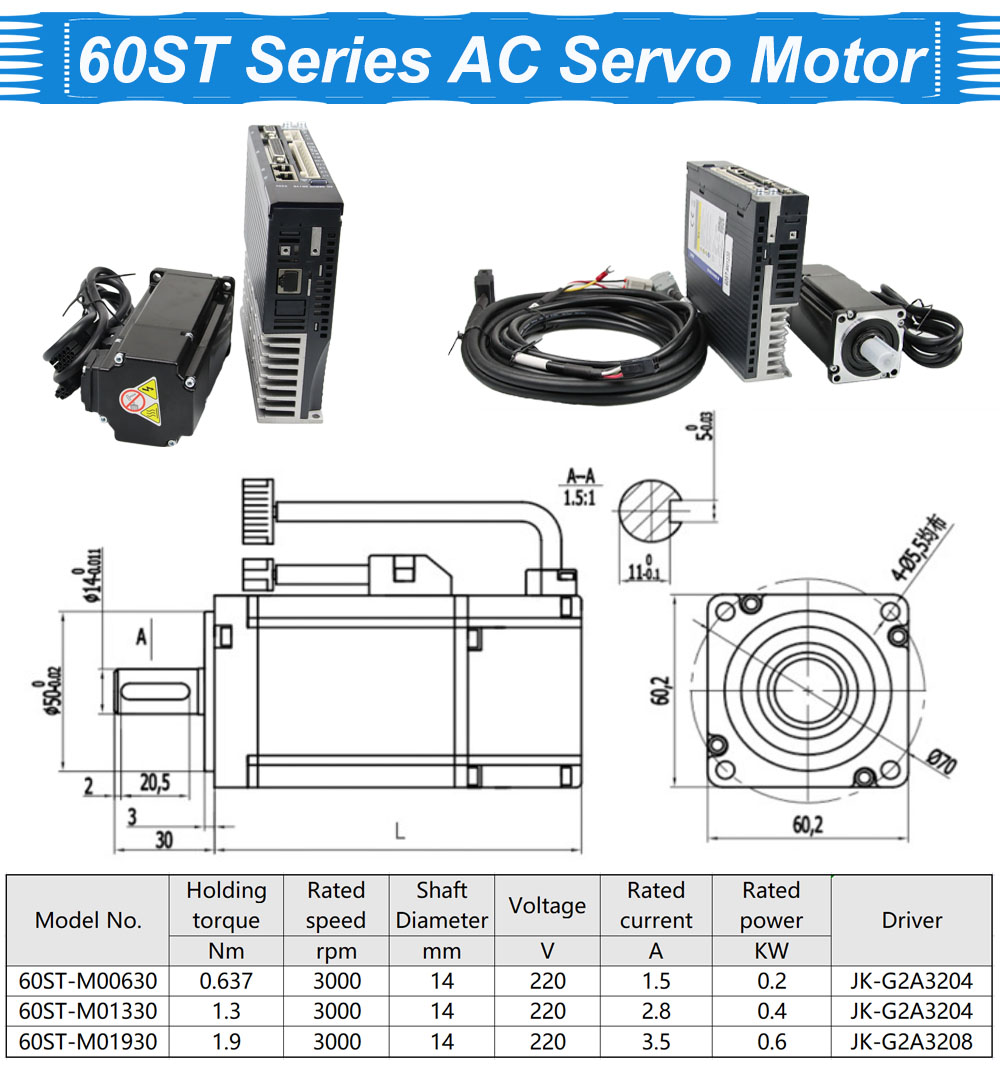

60ST-M00630
0.637
3000
1.5
0.2
JK-G2A3204
60ST-M01330
1.3
3000
2.8
0.4
JK-G2A3204
60ST-M01930
1.9
3000
3.5
0.6
JK-G2A3208
80ST-M01330
1.3
3000
2
0.4
JK-G2A3204
80ST-M02430
2.39
3000
3
0.75
JK-G2A3208
80ST-M03520
3.5
2000
3
0.73
JK-G2A3208
80ST-M04025
4
2500
4.4
1
JK-G2A3208
90ST-M02430
2.39
3000
3
0.75
JK-G2A3208
90ST-M03520
3.5
2000
3
0.73
JK-G2A3208
90ST-M04025
4
2500
4.4
1
JK-G2A3208
110ST-M02030
2
3000
2.5
0.6
JK-G2A3215
110ST-M04030
4
3000
5
1.2
JK-G2A3215
110ST-M05030
5
3000
6
1.5
JK-G2A3215
110ST-M06030
6
3000
6
1.8
JK-G2A3215
130ST-M04025
4
2500
4
1
JK-G2A3215
130ST-M05025
5
2500
5
1.3
JK-G2A3215
130ST-M06015
6
1500
4.3
0.95
JK-G2A3215
130ST-M06025
6
2500
6
1.5
JK-G2A3215
130ST-M07725
7.7
2500
7.5
2
JK-G2A3215
130ST-M10015
10
1500
6
1.5
JK-G2A3215
130ST-M10025
10
2500
10
2.6
JK-G2A3215
130ST-M15015
15
1500
9.5
2.3
JK-G2A3215

Features:

1) Can be widely used in mask machine, fans, pumps,compressors, transport machines, machinery and other general machinery.
2)Can also be used in petroleum,chemical,steel,mining and other harsh scenes.
3) High-inertia servo motor, high smoothness operation
4) Waterproof, dustproof and greaseproof
5) Power change from 50w to 30kw

Application:

CNC machining equipment, food processing equipment, material handling equipment, medical equipment, textile machinery and other industries.
