Home > Brushless DC Motor >

3 Phase 220V 5A Bellow 1500W Brushless DC Motor forced air cooling

CHANGZHOU JKONGMOTOR CO.,LTD
Contact Now

3 Phase 220V 5A Bellow 1500W Brushless DC Motor forced air cooling

Brand Name : Jkongmotor

Model Number : JKBLD1100

Certification : CE, ROHS,ISO9001

Place of Origin : Jiangsu, China

MOQ : 3-10pcs

Price : US $45 - 55 / Pieces | 1 Piece/Pieces (Min. Order)

Payment Terms : T/T , paypal , Western Union, L/C

Supply Ability : 30000PCS/MONTH

Delivery Time : For samples , 7-15 days / For batch , 15-25days

Packaging Details : with export carton . big quantity with pallet

Name : BLDC Driver

Used for : BLDC Motor Bellow 1100W

Input current : 0 - 5A

Input Voltage : AC 80V - 220V

Max Power : 1100W

Reserved temperature : -20℃~+65℃

Speed(RPM) : 100 - 8000 rpm/min

Cooling method : Natural air cooling&forced air cooling

Brand : JKongmotor

MOQ : 10pcs

Contact Now

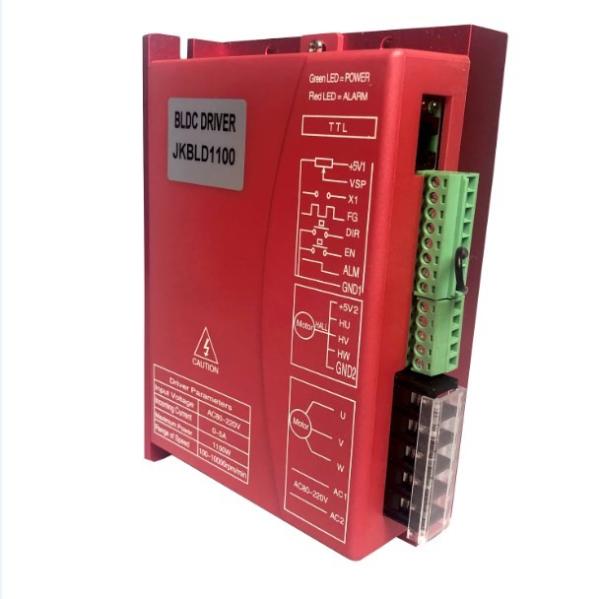

3 Phase 80V 220V 5A bellow 1500W brushless DC bldc motor driver Controller

Product Name: Brushless DC Driver
Model No.: JKBLD1100
Input Voltage: AC 80V - 220V
Input current: 0 - 5A
Max Power: 1500W
Range of Speed: 100 - 8000 rpm/min
Reserved temperature: -20℃~+65℃
Coolingmethod: Natural air cooling&forced air cooling

Usage: This driver is matched with Brushless DC motor bellow 750W.

The price is just for your reference, Pls contact me for latest price.

3 Phase 220V 5A Bellow 1500W Brushless DC Motor forced air cooling

Full Products of Brushless DC Motors
Product Series
Poles No.
Rated Voltage
Rated Speed
Rated Torque
Rated Power
Motor Length
42mm BLDC Motor
8
24v
4000rpm
0.0625~0.25N.m
26~105w
41~100mm
57mm BLDC Motor
4
36v
4000rpm
0.055~0.44N.m
23~184w
37~107mm
60mm BLDC Motor
8
48v
3000rpm
0.3~1.2N.m
94~377w
78~120mm
80mm BLDC Motor
4
48v
3000rpm
0.35~1.4N.m
110~440w
78~138mm
86mm BLDC Motor
8
48v
3000rpm
0.35~2.1N.m
110~660w
71~138.5mm
110mm BLDC Motor
8
310v
3000rpm
1.65~6.6N.m
518~2073w
83~173mm
130mm BLDC Motor
10
310v
3000rpm
2.39~11.94N.m
750~2500w
115~190mm
Above only for representative products, products of special request can be made according to the customer request.

CHANGZHOU JKONGMOTOR CO.,LTD (Changzhou Jingkong Motor&Electric Appliance Co.,Ltd)is an ISO9001 Professional manufacturer. Was established in 2011 year. We are a professional manufacturer in Changzhou city, China. Production Capacity exceeds more than 1 million motors per year. Our Company offers three major series of products: Hybrid Stepper motors, Brushless Dc motor and Dc Brush motor. We are always continues develop new type models.


We are also have several joint venture companies who specialized in the production of AC servo motor, PM stepper motors, Spindle motor and Motor drivers. We export our motors to more than 30 countries Such as United States, Germany, Russia, Turkey, Brazil and so on.


Jkongmotor sold to major manufacturing Companies for Industry of automation, medical and health care equipment, 3d printer machines, packing devices, Information Technology, household appliance products.


We have an Engineering team with many years of experience in application Engineering, design Engineering with the latest advances equipment. Our Engineering Staff provides the finest quality product with service after the product is delivered to our Customers.
